Avtech DGM2103ASVP - 2MPX IP BULLET KAMERA
Partnerska zaloga 5+ artikli
Artikli partnerja RICOM secure
Predstavitev

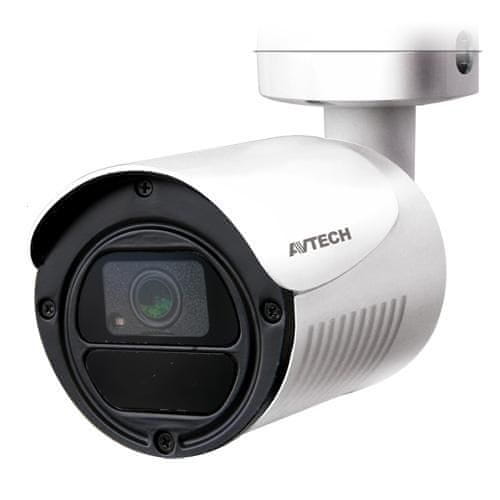

2MPX IP bullet kamera AVTECH DGM2103ASVP z IR osvetlitvijo do 25 metrov in največjo ločljivostjo videa 1920×1080 px. Sodoben dizajn, zaradi katerega se kamera prilega vsakemu okolju. Primerno za notranjo in zunanjo uporabo (zaščita IP66). Leča: f2,8 mm / F1,6, f3.6mm / F1.6.
GLAVNE FUNKCIJE
• P2P Cloud EaZy Networking brezplačno
Cloud EaZy Networking je na voljo za samodejno povezavo te naprave z internetom v treh korakih z uporabo naše brezplačne mobilne aplikacije EagleEyes. Funkcija Buddy vam omogoča, da pravice za dostop do naprave delite z drugimi. Obvestilo o prijavi / odjavi naprave.
• Vidna osvetlitev za barvno snemanje tudi ponoči
• Podprti standard ONVIF za poenostavitev sistemske integracije
• POE (Power-over-Ethernet) podpora za odpravo uporabe napajalnih kablov in zmanjšanje stroškov namestitve
• DWDR za povečanje prepoznavanja slike v preveč osvetljenih in temnih predelih
• Način navpičnega pogleda za ogled dolgih in ozkih površin, kot so hodniki in ulice.
• Daljinsko upravljanje / nadzor
Mobilna aplikacija, popolnoma združljiva z napravami iOS in Android. Združljivost s spletnimi brskalniki v operacijskem sistemu Windows. Za nadzor naprav 32CH v operacijskem sistemu Windows obstaja računalniški program CMS Lite.
Tehnične specifikacije:
Network |
|
|
LAN Port |
YES |
|
LAN Speed |
10/100 Based-T Ethernet |
|
Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4/IPv6, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP |
|
ONVIF Compatible |
YES (Profile S) |
|
Number of Online Users |
10 |
|
Security |
|
|
Remote Access |
|
|
Video |
|
|
Network Compression |
H.265 / H.264 / MJPEG |
|
Video Resolution |
1920 × 1080 / 1280 × 720 / 720 × 480 / 352 × 240 |
|
Frame Rate |
30fps |
|
Multiple Video Streaming |
4 (H.265 / H.264 / MJPEG) |
|
General |
|
|
Image Sensor |
1/2.8" CMOS image sensor |
|
Min Illumination |
0.001 Lux / F1.6, 0 Lux (IR LED ON) |
|
Shutter Speed |
1/2 to 1/10,000 sec |
|
S/N Ratio |
More than 48dB (AGC off) |
|
Lens |
f3.6mm / F1.6 |
f2.8mm / F1.6 |
Viewing Angle |
84° (Horizontal) / 45° (Vertical) / 99° (Diagonal) |
101° (Horizontal) / 54° (Vertical) / 120° (Diagonal) |
IR LED |
2 Units |
|
IR Effective Distance** |
Up to 25 meters |
|
IR Shift |
YES |
|
Smart Light Control |
YES |
|
White Balance |
ATW |
|
AGC |
Auto |
|
IRIS Mode |
AES |
|
Sharpness |
YES |
|
DWDR |
YES |
|
POE |
YES (IEEE 802.3af) |
|
Privacy Mask |
YES |
|
Vertical View Mode |
YES |
|
Weather-proof |
IP66 |
|
Operating Temperature |
–25℃ ~ 50℃ |
|
Operating Humidity |
90 or less relative humidity |
|
Power Source (±10%) |
12V / 1A |
|
Current Consumption (±10%) |
140mA (IR LED OFF) / 220mA (IR LED ON) |
|
Power Consumption (±10%) |
PoE & PoN: 3.7W; DC adapter: 3W |
|
Net Weight (kg) |
0.36 |
Others |
|
EaZy Networking |
YES |
Mobile Surveillance |
iOS & Android mobile devices |
Motion Detection |
YES |
Event Notification |
FTP / Email / SMS |
RTC (real-time clock) |
YES |
Digital Pan / Tilt / Zoom |
YES |
Minimum Web Browsing Requirements |
‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
Optional Junction Box |
AVA456-WBKT / AVA456-WHKT |
Certification |
CE |
*The specifications are subject to change without notice.
