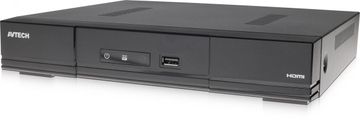

Avtech DGD1005AIX(EU) - XVR snemalnik, 4 kanalni
Avtech DGD1005AIX(EU) - XVR snemalnik, 4 kanalni
Številka: 47613675
Partnerska prodaja
AVTECH DGD1005AIX(EU) je 4-kanalni XVR snemalnik z umetno inteligenco (AI) za sisteme kamer AVTECH HD CCTV. Funkcije zaznavanja ljudi, obrazov in vozil se obdelujejo neposredno v snemalni napravi. Vse kar morate storiti je, da zamenjate svoj HD CCTV.
Celoten opis
181,14 €
Partner:
RICOM secure
Partnerska zaloga 5+ artikli
26.11.2024 -
27.11.2024
predvidena dostava na dom
Artikli partnerja RICOM secure
Za prodajo odgovarja mimovrste=), vključno z morebitnimi reklamacijami ali vračili artiklov.
Partner pošlje artikle v ločeni pošiljki.
Način in ceno dostave določi partner. Osebni prevzem partnerskih artiklov v mimovrste=) trgovinah ni mogoč.
Številka:
47613675
Predstavitev
AVTECH DGD1005AIX(EU) je 4-kanalni XVR snemalnik z umetno inteligenco (AI) za sisteme kamer AVTECH HD CCTV. Funkcije zaznavanja ljudi, obrazov in vozil se obdelujejo neposredno v snemalni napravi. Vse kar morate storiti je, da zamenjate svoj HD CCTV DVR s tem XVR in imeli boste sistem kamer z zmogljivostmi umetne inteligence.
GLAVNA FUNKCIJA
Implementacija AI na XVR
Algoritmi za zaznavanje videa, ki temeljijo na AI, se obdelujejo na strani snemalnika, ne na strani kamere IP ali CMS, ki podpira AI. Samo ena AI XVR in katere koli kamere lahko uresničijo napredne funkcije zaznavanja ljudi, vozil in obrazov.
Rešitev AI znotraj obstoječega sistema kamer
Preprosto zamenjajte svoj HD CCTV snemalnik s tem XVR in pridobite zaznavanje ljudi in vozil z AI. Ni vam treba kupiti IP kamer, ki podpirajo AI, ali visokoproračunske licence za CMS.
Prilagoditev scenarija
Omogoča vam prilagoditev niza dejanj, ki se bodo samodejno sprožila po pojavu določenega dogodka. Obstaja več predlog scenarijev, med katerimi lahko izberete, kdaj in kaj storiti po določenem dogodku.
P2P Networks Cloud EaZy Free*
Cloud EaZy Networking je na voljo za samodejno povezavo te naprave z internetom v treh korakih z uporabo naše brezplačne mobilne aplikacije EagleEyes.Funkcija »Buddy« se uporablja za skupno rabo dovoljenj za dostop do naprave z drugimi osebami.Obvestilo o prijavi/odjavi v napravi.
Push Video & Push Status – obvestilo o aktivnih dogodkih z EagleEyes
Push Video za pošiljanje takojšnjih obvestil o alarmnem dogodku, ko je na kamero priključena alarmna naprava, ki podpira povezavo zunanje alarmne naprave. Pritisnite gumb Status za pošiljanje takojšnjih obvestil o sistemskih dogodkih, kot je izguba videa ali brisanje podatkov na trdem disku.
TEHNIČNE SPECIFIKACIJE
|
VIDEO |
|
|
|
Video System |
NTSC / PAL (auto detection) |
|
|
Video Compression Format |
H.265 |
|
|
Video Signal |
IP / TVI / CVI / Analog HD / 960H |
|
|
Video Input |
4 pentabrid channels (IP / TVI / CVI / Analog HD / 960H) |
|
|
Video Input Interface
|
Analog Mode |
Composite video signal 1 Vp-p 75Ω BNC |
|
IP Mode |
Ethernet, 10/100 Base-T |
|
|
Video Output
|
BNC |
YES (Spot Monitor supported) |
|
VGA* |
YES (Spot Monitor supported) |
|
|
HDMI |
YES (4K2K display) |
|
|
Video Resolution
|
Analog Mode |
8MP Lite / 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF |
|
IP Mode |
2592 × 1944 / 2048 × 1536 / 1920 × 1080 / 1280 × 720 / 720 × 480 / 352 × 240 |
|
|
Live Display Mode
|
Local |
4CH |
|
Remote |
4CH |
|
|
Playback Display Mode
|
Local |
4CH |
|
Remote |
4CH |
|
|
RECORD & BACKUP |
|
|
|
Max. Recording Rate
|
Analog Mode |
Up to 28 IPS @ 8MP Lite Up to 24 IPS @ 5MP Up to 40 IPS @ 5MP Lite Up to 30 IPS @ 4MP Up to 60 IPS @ 4MP Lite Up to 60 IPS @ FHD (1080P) |
|
IP Mode |
UP to 60 IPS @ 2592 × 1944 (5MP) / 2048 × 1536 (3MP) / 1920 × 1080 |
|
|
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
|
|
Quick Search |
Time / Motion / Alarm search mode |
|
|
Backup Device |
USB 2.0 drive / Network |
|
|
Regular Backup |
YES |
|
|
AUDIO |
|
|
|
Audio Input |
4 |
|
|
Audio Output |
1 (Mono) |
|
|
EXTERNAL I/O |
|
|
|
RS485 |
YES |
|
|
Alarm Input |
4 in / 2.4V(NC) or 0.3V(NO) threshold DC5V |
|
|
Alarm Output |
1 out / 3A@AC120V, 3A@DC24V |
|
|
GENERAL |
|
|
|
Hard Disk Storage |
20TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface |
|
|
SATA Interface |
YES |
|
|
eSATA Interface |
Expandable with a SATA to eSATA cable |
|
|
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
|
|
USB Mouse Control |
YES |
|
|
Motion Detection Area |
16 × 12 grids per channel |
|
|
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
|
|
AI Detection Channel |
2 channels in analog mode |
|
|
AI Detection Function |
Face, human and vehicle detection (Flow Counting, Virtual Fence and Perimeter Intrusion can be further configured when human or vehicle detection is chosen.) |
|
|
Event Notification |
Push Video / Push Status / FTP / E-Mail |
|
|
Event Pop-up & Preview |
YES |
|
|
Scenario Setup |
YES |
|
|
Picture Zoom |
8X digital zoom |
|
|
PTZ Control |
YES |
|
|
Key Lock (Password Protection) |
YES |
|
|
User Level |
4 user levels for different access privilege |
|
|
Video Loss Detection |
YES |
|
|
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
|
|
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
|
|
Daylight Saving |
YES |
|
|
Power Source (±10%) |
12V / 2A |
|
|
Operating Temperature |
0ºC ~ 40ºC (32ºF ~104ºF) |
|
|
Operating Humidity |
10% ~ 85% |
|
|
Dimensions(mm)** |
260 × 235.7 × 48 |
|
|
Net Weight (kg) |
1.3 |
|
|
NETWORK |
|
|
|
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
|
|
Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
|
|
REMOTE SURVEILLANCE FROM PC |
|
|
|
Compatible Operating System |
Windows & MAC |
|
|
Compatible Program
|
Web browser |
Windows Edge, Google Chrome, Mozilla Firefox & Opera on Windows 10 (and later versions) and Google Chrome & Mozilla Firefox on MAC |
|
PC program |
32CH CMS software for Windows OS |
|
|
Max. online users |
20 |
|
|
Web Transmitting Compression Format |
H.265 |
|
|
Network Live Audio |
YES |
|
|
Remote Event Download & Playback |
YES |
|
|
MOBILE SURVEILLANCE |
|
|
|
App |
EagleEyes |
|
|
Compatible Devices |
iOS & Android devices |
|
|
Push Video |
YES (4 channels) |
|
|
Push Status |
YES |
|
|
OTHERS |
|
|
|
EaZy Networking |
YES |
|
|
Spot Monitor Support |
YES (VGA or Composite) |
|
|
DCCS Support |
YES |
|
|
AVTECH Free DDNS service |
YES |
|
|
Privacy Mask |
YES |
|
|
Multiplex Operation |
Live display / record / playback / backup / network operations |
|
|
System Recovery |
System auto recovery after power failure |
|
|
Optional Peripherals |
SATA to eSATA cable (PWSC07F120200) |
|
|
Certification |
CE / UL (Power Adapter) |
|
* The VGA display will be off when the HDMI display is set to 4K2K
** Dimensional tolerance: ±5mm.
*** The specifications are subject to change without notice.
ZADNJA PLOŠČA
